Impeller

See part 13 in diagram below.

 Davey QB Series Booster Pump Impeller 2.0hp.Old impellers were black in colour now are beige.Suits single and two speed models.This impeller can also be used on later model Spanet Booster pumps (part number stamped on impeller) and LX pumps.Impeller diameter: 106mm.Internal vane width: 13mm.Seal…

Spa-Quip Maxiflow Impeller 1.5hp. Impeller will only fit motors with a 14mm diameter rotor shaft, not the old style with a 16.5mm shaft.**The impellers to suit 16.5mm shafts are no longer avaliable** Impeller diameter is 100mmInternal vane Width is 14mmSeal required is 3/4" Type 6. Part # S3/4T6

…external and internal threads for more plumbing options Superior Hydraulic Design – Moves larger volumes of water, resulting in lower operating costs Impeller Manufactured with PPO Resin - Withstands the toughest water environments Fluoroelastomer Rubber Shaft Seal - Longer-lasting seal stands up to…

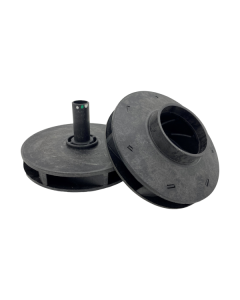

 Aquaflo Circ-Master Impeller 2.5hpHas White/Green/White Dot on the impeller shaft.Used on Signature spas and others.Impeller diameter 114mm.Internal vane width 12mmSeal required 5/8" Type 6. Part # S5/8T6

 Davey QB Series Booster Pump Impeller 2.5hp.Old impellers were black in colour now are beige.Suits single and two speed models.This impeller can also be used on later model Spanet Booster pumps (part number stamped on impeller) and LX pumps.Impeller diameter: 111mm.Internal vane width: 13mm.Seal…

 Davey QB Series Booster Pump Impeller 3.0hp.Old impellers were black in colour now are beige.Suits single and two speed models.This impeller can also be used on later model Spanet Booster pumps (part number stamped on impeller) and LX pumps.Impeller diameter: 119mm.Internal vane width: 13mm.Seal…

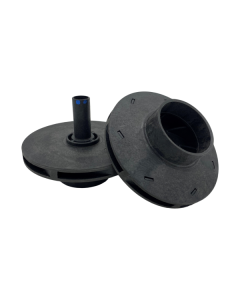

 Aquaflo Circ-Master Impeller 1.5hpHas two Blue dots on the impeller shaft.Used on Signature spas and others.Impeller diameter 111mm.Internal vane width 6.5mm.Seal required 5/8" Type 6. Part # S5/8T6

Impeller replacementFits Hayward Sharkvac and TigerShark robotic cleaners

 Waterway 1.75/2.0hp Impeller. Marked 4hp in the front centre of the impeller.Impeller diameter 115mm.Internal vane width 13mm.Commonly used in Southwest/ Sierra spas pumps. Product of USA.Seal required 5/8" Type 7. Part # S5/8T7.

 Waterway 1.5hp Impeller. Marked 5hp in the front centre of the impeller in most but not all.Impeller diameter 115mm.Internal vane width 15.5mm. Product of USA.Seal required 5/8" Type 7. Part # S5/8T7

 Aquaflo Circ-Master Impeller 1.5hpHas two Green dots on the impeller shaft.Used on Signature spas and others.Impeller diameter 112mm.Internal vane width 10.7mmSeal required 5/8" Type 6. Part # S5/8T6

…provides a full view of its operation Easy access to the lint pot with swing-aside knobs Large capacity Strainer Glass reinforced closed face impeller Diffuser for low noise operation Corrosion-proof resins used in all moulded components Double insulated, heavy duty motor Thermal overload protection…

…provides a full view of its operation Easy access to the lint pot with swing-aside knobs Large capacity Strainer Glass reinforced closed face impeller Diffuser for low noise operation Corrosion-proof resins used in all moulded components Double insulated, heavy duty motor Thermal overload protection…

…provides a full view of its operation Easy access to the lint pot with swing-aside knobs Large capacity Strainer Glass reinforced closed face impeller Diffuser for low noise operation Corrosion-proof resins used in all moulded components Double insulated, heavy duty motor Thermal overload protection…

…life. Built-in, self-resetting thermal overload protects the motor against damage from over-heating. High Quality – Corrosion resistant Noryl impeller for longer lasting trouble free performance. Long Lasting – High performance silicon carbide Viton mechanical seal for long life in pool water.…

…life. Built-in, self-resetting thermal overload protects the motor against damage from over-heating. High Quality – Corrosion resistant Noryl impeller for longer lasting trouble free performance. Long Lasting – High performance silicon carbide Viton mechanical seal for long life in pool water.…

 Waterway 3.0hp Euro Impeller. Marked with Red dot in the front centre of the impeller.Impeller diameter 123mm.Internal vane width 11mm. Product of USA.Seal required 5/8" Type 7. Part # S5/8T7.

Waterway 1.5hp Impeller. Marked 3hp in the front centre of the impeller.Impeller diameter 115mm.Internal vane width 9mm. Product of USA.Seal required 5/8" Type 7. Part # S5/8T7.

 Aquaflo Circ-Master Impeller 3.0hpHas one Silver Dot on the impeller shaft.Used on Signature spas and others.Impeller diameter 115mm.Internal vane width 14mm.Seal required 5/8" Type 6. Part # S5/8T6

Aquaflo Circ-Master Impeller 1/15hpHas one Red dot on the impeller shaft.Used on Signature spas and others.Impeller diameter 95mm.Internal vane width 6mm.Seal required 5/8" Type 6. Part # S5/8T6

 Spa-Quip Maxiflow Impeller 2.5hp. Impeller will only fit motors with a 14mm diameter rotor shaft, not the old style with a 16.5mm shaft.**The impellers to suit 16.5mm shafts are no longer avaliable** Impeller diameter is 113mmInternal vane width is 12.7mmSeal required is 3/4" Type 6. Part # S3/4T6

 Spa-Quip Maxiflow Impeller 2.0hp. Impeller will only fit motors with a 14mm diameter rotor shaft, not the old style with a 16.5mm shaft.**The impellers to suit 16.5mm shafts are no longer avaliable** Suits two speed and single speed Maxiflow pumps.Impeller diameter is 106mm.Internal vane width is…

 Spa-Quip Maxiflow Impeller 3.0hp. Impeller will only fit motors with a 14mm diameter rotor shaft, not the old style with a 16.5mm shaft.**The impellers to suit 16.5mm shafts are no longer avaliable** Impeller diameter is 113mmInternal vane width is 15.5mmSeal required is 3/4" Type 6. Part # S3/4T6
